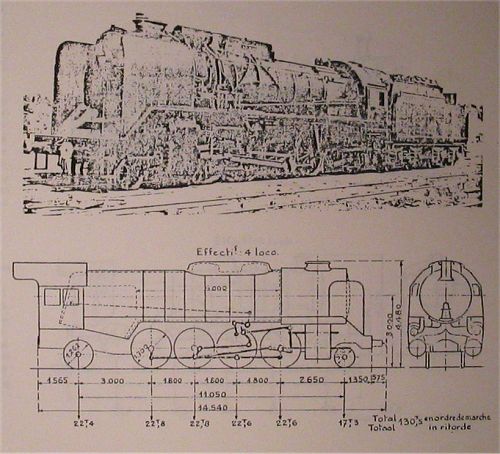

Construction year: 1929
Numbering locomotives: 5.001 - 5.004
Type of locomotief: ( Mikado) 2-8-2
Mechanism
Diameter of cylinders (d) : 720 mm
Piston stroke (l) : 720 mm
Diameter of driving wheels (D) : 1,700 m
Kettle
Kettle pressure (P) : 14 kg/cm²
Grid
Length: 2,500 m
Width: 2,200 m
Surface area (G) : 5,5 m²
Heating surface of the firebox: 19.89 m²
Heating surface of the firebox
Small fire tubes
Diameters : 50/55 mm
Amount: 170
Surface area 160,4 m²
Big fire tubes
Diameters : 128/137 mm
Amount: 43
Surface area 103.72 m²
Surface area of the cooking tubes: 2 m²
Total heating area (S) : 268,05 m²
Diameter superheater pipes: 30,5/35 mm
Boiler hull
Average diameter: 1,961 m
Plate thickness: 19,5 mm
Thickness fireboxplates: 15 en 11 mm
Material fireboxplates: Copper
Thickness fireboxplates
Sky plate: 16 mm
Rear and side plates: 16 mm
Pipe plate: 16 tot 30 mm
Thickness of pipe plate - Smoke box: 25 mm
Content of the ride-on kettle: 9,735 m³
Steam chest volume: 4,300 m³
Surface area of steam release: 13,75 m²
Ratio S/G : 52
Ratio S1/S: 0,393
Weight empty locomotive: 118,1 ton
Adhesion weight (A): 90,8 ton
Ratio T/A: 1/9,94
Towing capacity: T= 0,75 Pd²l 23 053 kg
D
